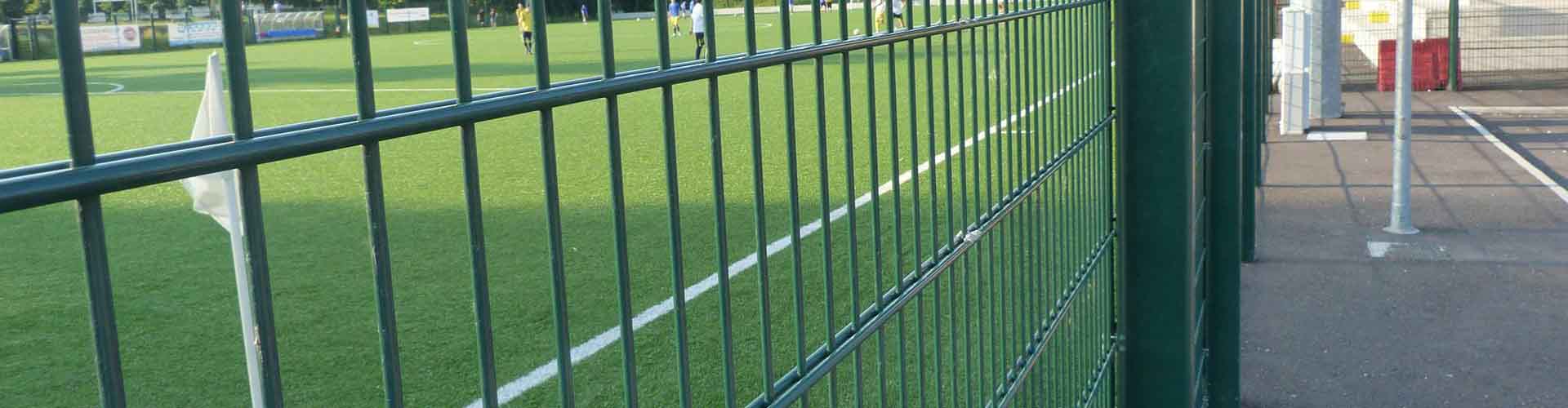

868(656) Double Wire Mesh Fence
Your One-stop Double Wire Mesh Fence Supplier in China
fence fartory

Your Trusted Double Wire Welded Mesh Fence Factory

As one of China’s leading double wire welded mesh fence manufacturers, Anlonfence can sign an NDA with you before sending CAD files. Before delivery, we will test the temporary fence about five times. After completing the fence test report, we will send a temporary fence test report for your approval.

Send us your project requirements, and we will provide you with the best double wire welded mesh fence solution according to your exact needs.

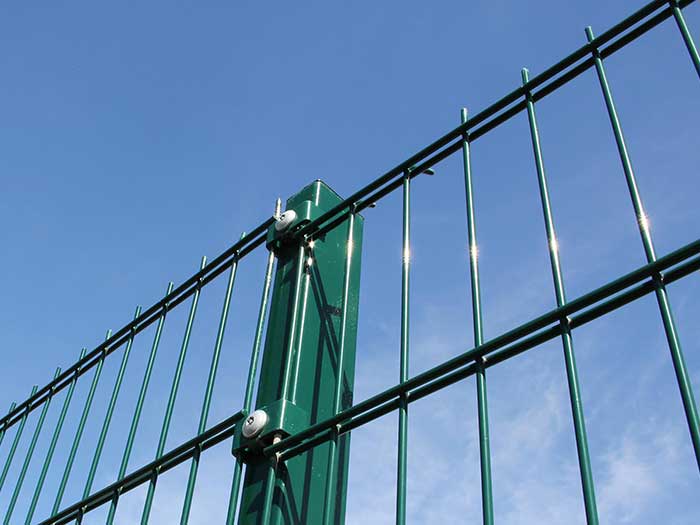

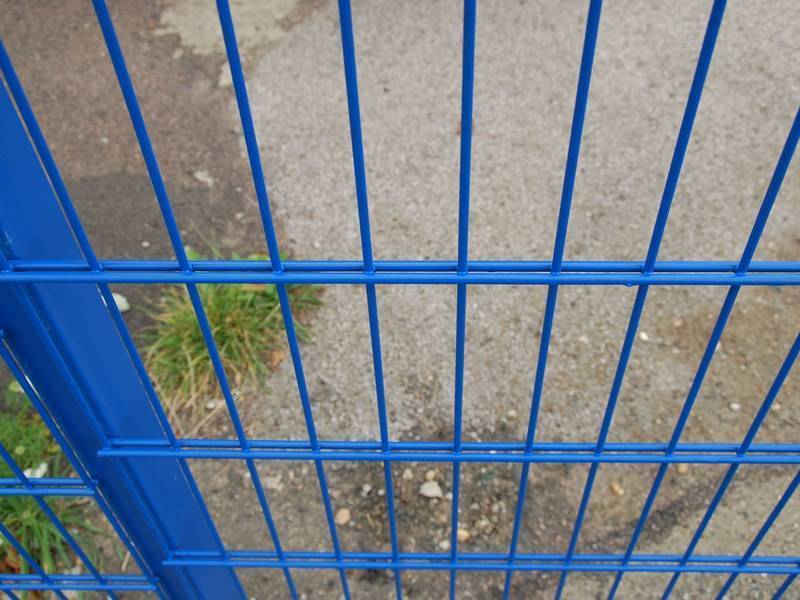

double wire mesh fence blue

A blue double wire mesh fence with T post.

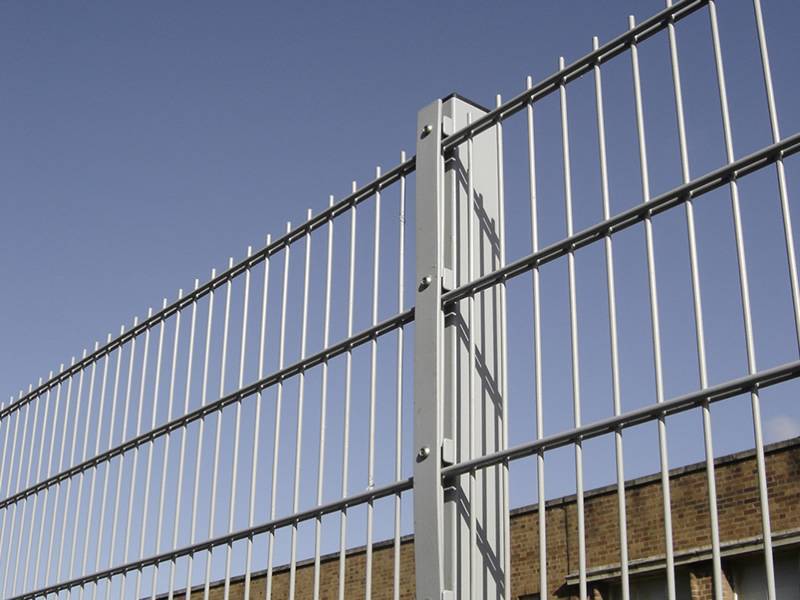

double wire mesh fence gray

A gray double wire fence with

double wire mesh fence

Pyramid double wire mesh fence, color and style can be customized

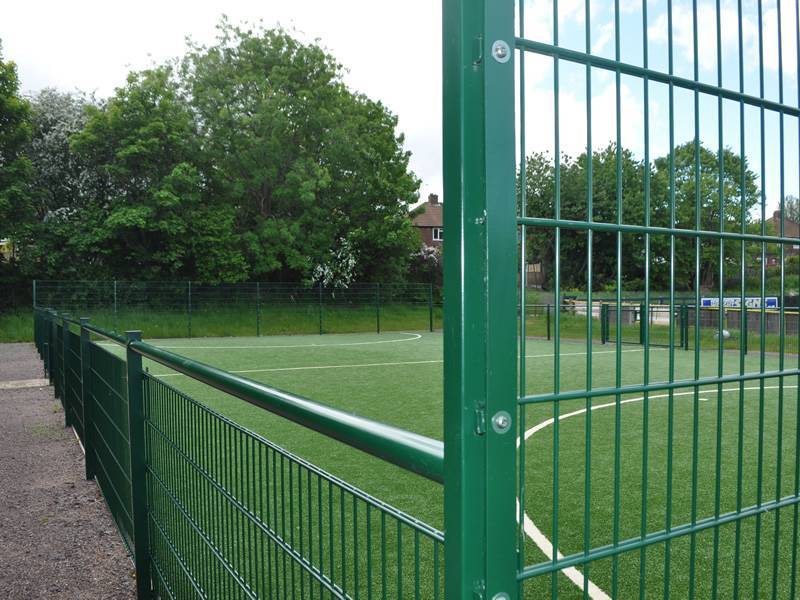

double wire mesh fence court

Double wire mesh fence for a sports field.

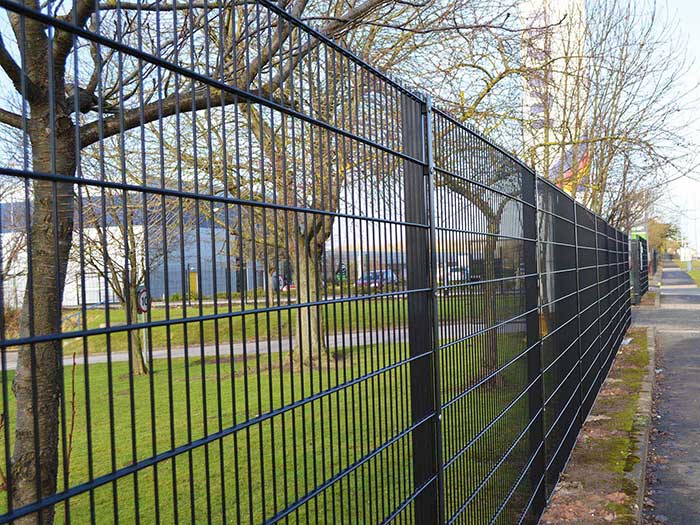

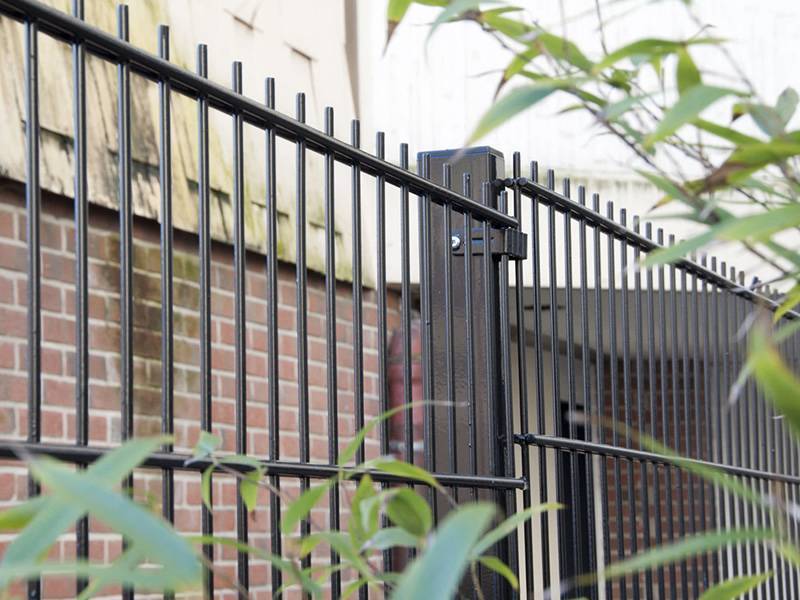

double wire mesh fence house

A double wire mesh fence for private residence.

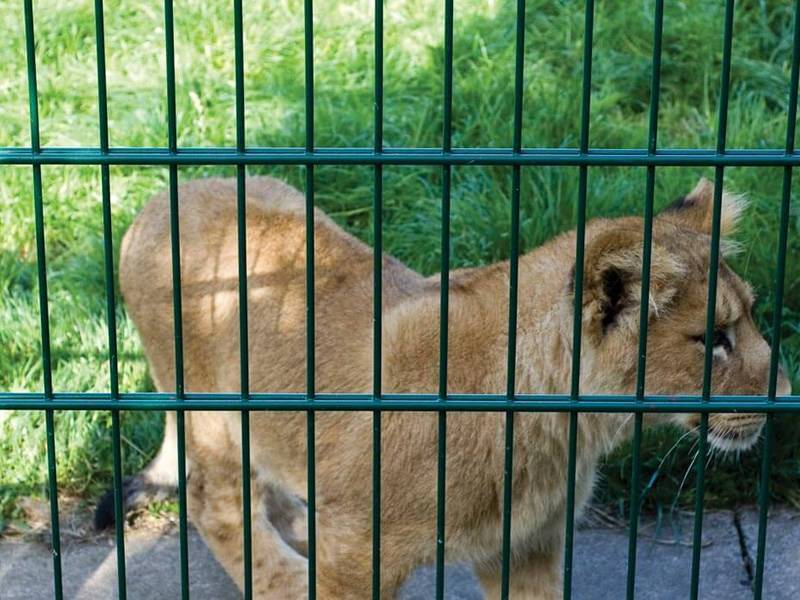

double wire mesh fence lion

A double wire mesh fence is used in a zoo.

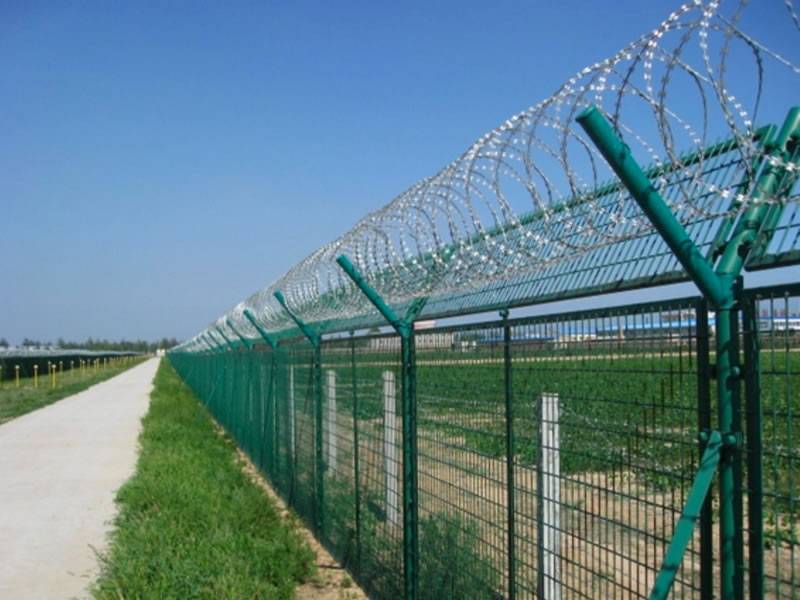

razor wire mesh fencing

Razor double wire mesh fence for anti-climbing

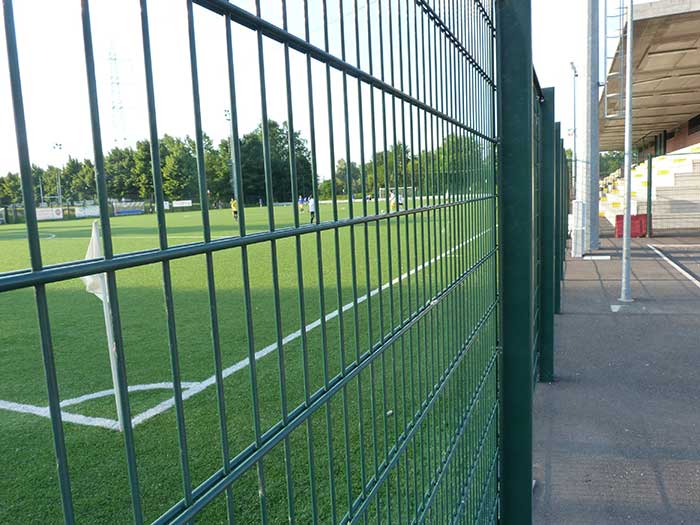

double wire mesh fence

Double wire mesh fence for the football field.

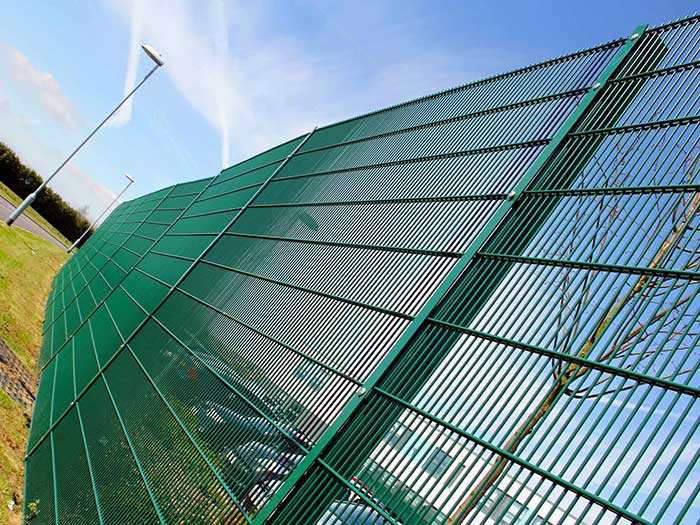

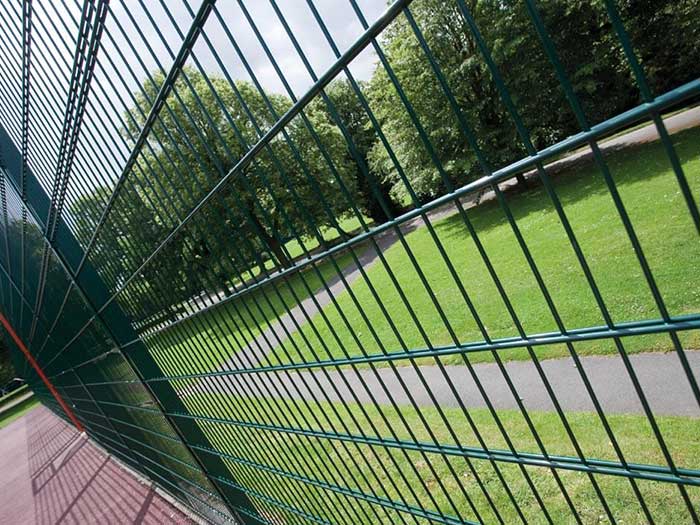

double wire mesh fence

Double wire mesh fences are used in industrial areas.

Anlonfence is a professional manufacturer of double wire welded mesh fences.

Welded wire mesh fence specialist offers the best solutions to improve security for customers.

If your new project or production needs to make a double wire welded mesh fence, Anlonfence will be your best choice for making a double wire welded mesh fence here.

Anlonfence is one of the best double wire welded fence suppliers. Anlonfence will work with our professional engineer team to provide you with professional advice based on your project needs. Anlonfence will 100% support your double wire welded mesh fence plan in the design and preparation stage.

Just email us or call us, and we will get back to you as soon as possible!

Material: Low carbon steel wire; Q195 & Q235Low-carbon iron wire, galvanized wire
Wire: 6/5/6mm, 8/6/8mm
Mesh: 50*200mm,50*100mm, etc.
Height: 1.2m-3m
Width: 2-3m
Post: 60*60mm,80*80mm,100*100mm, etc;  Hot dipped galvanized tube, no coated tube
Bolts: M8 anti-vandal steel or stainless steel
Accessories: post caps, clips or flat bar, nuts and bolts

Surface treatment: Hot dipped galvanized, PVC coated, Powder-coated
Color: Green, Blue, Yellow, White, Black, etc.
Packaging: pallets
Processing of double wire welded mesh:
Material – Straightening & cut wire – Welding – Galvanizing – Powder coating – Packaging

Certificates: ISO9001

Double Wire Mesh Fence
Mesh OpeningWire ThicknessPanel WidthPanel HeightPost Type
50x100mm
50x150mm
50x200mm
55x200mm
75x150mm
6/5/6mm
8/6/8mm
2.0m
or
2.5m
or
3.0m
630mmRound Post
48×1.5/2.0mm
60×1.5/2.0mm
Square Post(SHS)
50X50x1.5/2.0mm
60x60x1.5/2.0mm
80x80x1.5/2.0mm
Rectangular Post(RHS)
40x60x1.5/2.0mm
40x80x1.5/2.0mm
60x80x1.5/2.0mm
80x100x1.5/2.0mm
830mm
1030mm
1230mm
1430mm
1530mm
1630mm
1730mm
1830mm
1930mm
2030mm
2230mm
2430mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized.
Note: The fence can be customized according to your required if above specification is not satisfied with you

Note:

1.The fence can be customized according to your required if above specification is not satisfied with you.

2.Customized color and size are available, OEM orders are welcomed!

Benefits of  Double Wire Mesh Fence

Easy Installation
Cost-effective
Nice looking
Different options on color according to the using environment
Strong anti-rust and anti-corrosion ability
Different options of install clips such as metal or plastic
Different options of post

Double Wire Mesh Fence—The Ultimate FAQ Guide





What is the double wire mesh fence?

The double wire welded fence is welded by one vertical wire and two horizontal wires; according to the wire thickness, the fence can be divided into 6/5/6 type and 8/6/8 type. Compared with standard welded fence panels, it can be more robust. Our double wire fence is made of steel wire, and the surface treatment is galvanized, powder-coated, or PVC coated or customized according to customer requirements.

The mesh aperture for this twin-wire type of welded mesh fence is 200mm x 50mm. Twin horizontal wires at each intersection give a rigid but flat profile to this mesh fencing system, with vertical wires at 5mm or 6mm and horizontal wires at 6mm or 8mm depending on the height of the mesh panel and the site application. The mesh panel size can be from 1.0M up to 2.4M, with the finish galvanized and polyester coated in a range of standard RAL colors. This system makes the panel extremely strong and stable and makes the board extremely difficult to cut through. The double wire mesh fencing system is among the most comprehensive, cost-effective security fencing systems in the world today.

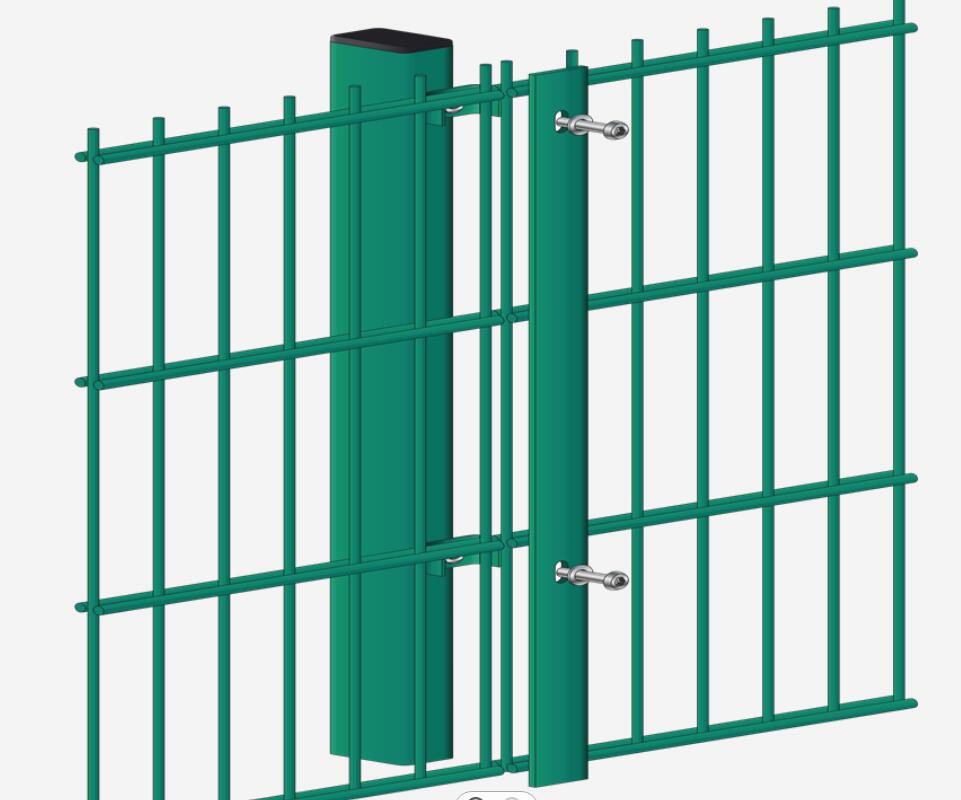

Posts

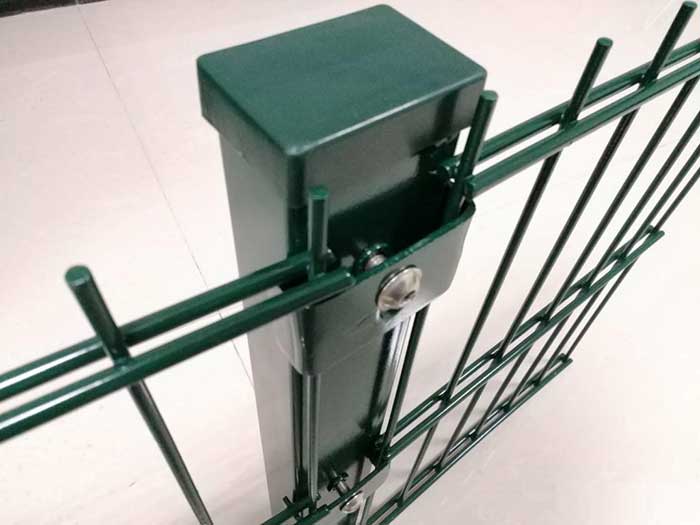

The Double wire mesh fence panels are attached with high-strength steel posts. The shared posts of the double wire mesh fence are SHS tube, RHS tube, and Panels are fixed to steel posts using clips and flat bar, with no visible fixings on the back of posts.

Installation manner
1. The post popular buried under the ground 600mm-800mm and pouring concrete when installation them.
2. Welded flange base under the post and used setscrews to install on the hard ground.

What is the double wire mesh fence used for?

The double wire mesh fence is the most commonly used type of barbed wire fence. On the left and right sides of the barbed wire sheet, there are two closely spaced side wires for fixing on the column. The double wire mesh fence is named after it.

Double wire mesh fences are used to protect objects with high safety requirements, such as solar power stations, hydropower stations, airports, railways, industrial sites, military warehouses, stadiums, shopping malls, port green areas, etc. It is also usually used as a fence for industrial, public, and administrative buildings, supermarkets, gardens, farms, yards, private houses, playgrounds, football or basketball courts, community fences, school isolation and protection, parks, and playground facilities.



Why did you choose our double wire mesh fence?

AnlonFence is a factory that produces temporary fences in China. It has 20+ years of experience in fence production. It exports many quick fence products to Australia, Canada, the United States, and other countries every year. It has been highly recognized by all customers and given high praise. Evaluation. Anlonfence can also meet the customer’s custom fence needs. We fully comply with the customer’s specification requirements. Pursue high quality and low price, win-win cooperation, and make progress together with our customers.

What applications can you use the double wire mesh fence for?

Welded Wire Fence for Gardens, Transportation, and Other Public Areas

Does double wire mesh fence rust?

Iron and steel fences will rust when exposed to water and oxygen. They are more prone to rust in salty water and acid rain. But, in galvanized steel fences, the surface is protected, which means that they can last up to 20 years or more.

Mild rust damage can be fixed by using a wired brush on the area where rust appears. It is essential to remove any paint flakes and dirt. You can paint a new protective coat for the wires.

How To Find Reliable double wire mesh fence Manufacturers In China?

  1. Google search. Google search double wire mesh fence, manufacturer
  2. Recommended by your industry trade association
  3. Online directories of overseas manufacturers, such as Global Sources and Alibaba
  4. International trade shows. While there are trade shows in China where you can meet manufacturers, a better place to start is attending U.S. trade shows that attract Chinese manufacturers.
  5. China Fence Hardware Exhibition.
  6. Baidu search and more.

Are you an actual fence factory? Or a trading company?

We have an actual fence factory and a trading department, mainly producing and selling wire mesh products.

Do you provide samples? Is it free?

Yes, we could offer the sample for free charge, but the cost of freight is not included.

Yes. According to your request.

Can I have a visit to your fence factory in china before the order?

Sure, welcome to visit our factory.

Please inform me of your flight time, and we will pick you up at our nearby airport, then drive to our factory for visiting.

Can I customize double wire mesh fencing?

Yes, we can produce according to your design drawings and actual needs.

Do you have quality guaranteed?

A 15-year Quality Guarantee covers all our sculptures.
